CG series Clamp-on Ultrasonic Flow Sensor / Flow Meter

The CG series clamp-on ultrasonic flow sensors / flow meters are compact in size, enabling efficient flow measurement and output without external circuitry.

The flow sensor / flow meters can be easily clamped onto flexible plastic tubing for precise liquid flow rate measurement and air bubble detection.

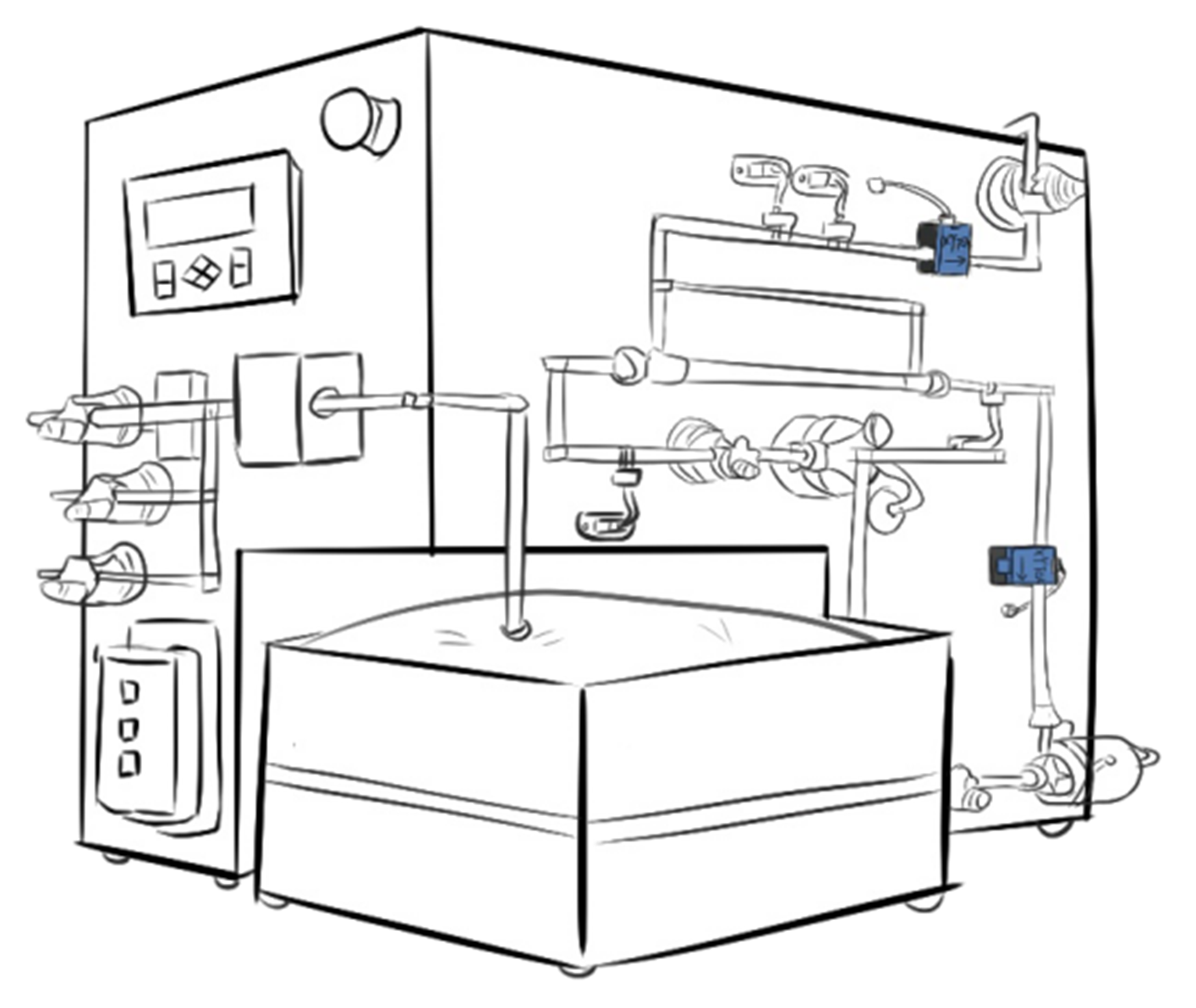

The clamp-on design makes the CG series ultrasonic flow sensors / flow meters ideal for applications with stringent hygiene requirements. The versatility makes them well-suited for bioprocessing devices with flow rate measurement requirements, such as ：

1. HPLC, liquid chromatography equipment

2. TFF, Tangential flow filtration system

3. Cross flow filtration system

4. Protein separation and purification devices

5. Single-use bioprocessing equipment, bioreactor

6. Buffer preparation, nutrient solution delivery

7. Virus inactivation device

8. Liquid filling machine

Request a demo

Product Features

High Accuracy：±3%

The flow rate measurement accuracy is essential for applications requiring stringent quality control and process optimization.

Hygienic Safety

The non-invasive measurement significantly reduces contamination risk and makes CG series clamp on flow sensor / flow meters ideal for sensitive applications in the biopharmaceutical industries, ensuring safety and compliance with health regulations.

Multi Features

The CG clamp-on flow sensor/flow meter support accurately calculating fluid volume and detecting air bubbles. The ultrasonic flow sensor / flow meters can perform volume dosing and function as a flow switch, providing a multifunctional solution that enhances operational versatility.

Compact Design

The CG clamp-on ultrasonic flow sensor/flow meter has embedded circuit eliminates external wiring, streamlining installation and reducing space requirements. The compact design simplifies setup while maintaining high flow rate measurement accuracy.

No Blockages

The CG clamp-on ultrasonic flow sensor/flow meter has no blockage or dead zones, enables smoother flow rate measurement and reduces potential system strain.

Output

The CG series clamp-on ultrasonic flow sensor / flow meter offers multi-output methods that facilitate seamless integration with existing bio devices.

Customized Calibration

The CG clamp-on ultrasonic flow sensor/flow meter provide tailored calibration options accommodate various plastic tubing materials, sizes, temperatures, and liquid types. The customization guarantees optimal performance and accuracy tailored to specific flow rate measurement needs.

Product Selection

Part #

Flow Range

Accuracy

Tubing OD

Tubing ID

CG016NS

Default: 500 mL/min Max: 2000 mL/min

0-200mL/min: ±6mL/min 200-2000mL/min: ±3%

5/32" (4mm)

4mm

1/16" (1.6mm)

2mm
CG019NS

Default: 800 mL/min Max: 4000 mL/min

0-200mL/min: ±6mL/min 200-4000mL/min: ±3%

3/16" (4.8mm)

5mm

1/16" (1.6mm)

3mm
CG025NS

Default: 1000 mL/min Max:3000 mL/min

0-200mL/min: ±9mL/min 200-3000mL/min: ±3%

1/4" (6.4mm)

7mm

1/8" (3.2mm)

4mm
CG032NS

Default: 2000 mL/min Max:6000 mL/min

0-300mL/min: ±9mL/min 300-6000mL/min: ±3%

5/16" (7.9mm)

8mm

3/16" (4.8mm)

5mm
CG038NS

Default: 3000mL/min Max:8000 mL/min

0-500mL/min: ±15mL/min 500-8000mL/min: ±3%

3/8" (9.5mm)

9mm

1/4" (6.4mm)

6mm
CG044NS

Default: 4000mL/min Max:9000 mL/min

0-600mL/min: ±18mL/min 600-9000mL/min: ±3%

7/16"(11.1mm)

11mm

5/16" (7.9mm)

8mm
CG050NS

Default: 5000 mL/min Max:10000 mL/min

0-700mL/min: ±21mL/min 700-10000mL/min: ±3%

1/2" (12.7mm)

13mm

3/8" (9.5mm)

10mm
CG056NS

Default: 6000 mL/min Max: 12000 mL/min

0-800mL/min: ±24mL/min 800-12000mL/min: ±3%

9/16"(14.3mm)

14mm

3/8" (9.5mm)

10mm
CG063NS

Default: 8000 mL/min Max:14000 mL/min

0-900mL/min: ±27mL/min 900-14000mL/min: ±3%

5/8" (15.9mm)

16mm

3/8" (9.5mm)

10mm
CG075NS

Default: 10000 mL/min Max:20000 mL/min

0-1200mL/min: ±36mL/min 1200-20000mL/min: ±3%

3/4" (19.1mm)

19mm

1/2" (12.7mm)

13mm
CG100NS

Default:25000 mL/min Max: 50000 mL/min

0-2000mL/min: ±60mL/min 2000-50000mL/min: ±3%

1" (25.4mm)

1" (25.4mm)

3/4" (19.1mm)

5/8" (15.9mm)
CG125NS

Default: 50000 mL/min Max: 100000 mL/min

0-8000mL/min: ±240mL/min 8000-100000mL/min: ±3%

1 1/4"(31.8mm)

1 1/4"(31.8mm)

3/4" (19.1mm)

1" (25.4mm)
CG138NS

Default: 50000 mL/min Max: 100000 mL/min

0-9000mL/min: ±240mL/min 9000-100000mL/min: ±3%

1 3/8" (35mm)

1 3/8" (35mm)

7/8" (22.2mm)

1" (25.4mm)

Specifications

Liquids

Water, blood, drinks, oil, paint, etc, without or not many solid particles

Accuracy

3% RD（Reading） plus zero offset

Calibration

Default：22±3 °C, water

Tubing Material

PVC, Silicone, PFA, PE, PUR, etc., flexible plastic tubing with smooth inner and outer surfaces

Housing Material

Plastic（Or stainless steel/aluminium）

Input Voltage

12-30 VDC

Current

Less than 20mA (without external load)

Connector

8 pole push-pull plug

Fluid Temperature

0°C to 60°C

Storage Temperature

-20°C to 70°C

Shielding

Grounded

Inputs and Outputs

• RS485
• Analog output: Current output 4-20mA, 0-20mA, 0-24mA, Voltage output 0-5V, 0-10V
• Frequency output: 0-20KHz
• Digital output: NPN, PNP, PUSH-PULL
•Digital input: Ground, lasts at least 20ms

Accessory

8-wire shielded cable, default length 1.5m

Optional Accessories

• USB Data Converter: can connect a sensor to a PC
• Flow Sensor Tool Box with display: can connect up to 3 sensors to a PC
• Flow Sensor Monitor: can connect to a sensor with a display, and extend the sensor cable out
• Flow Sensor Data Cable, 3 meters, push-pull plugs at both ends, can connect the flow sensor monitor and the sensor
