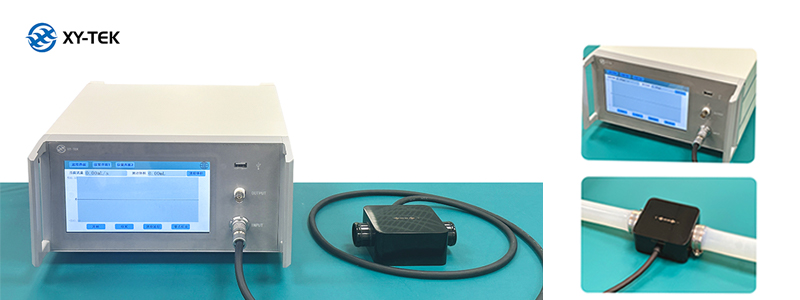

TH series High-speed Ultrasonic Flow Sensor

The TH series high-speed in-line ultrasonic flow sensors/flow meters are designed specifically for heart valve and hemodynamics testing devices.

With an accuracy of ±2% and very high sampling frequencies, they can effectively capture the pulsation characteristics of high-velocity liquids within the test flow path.

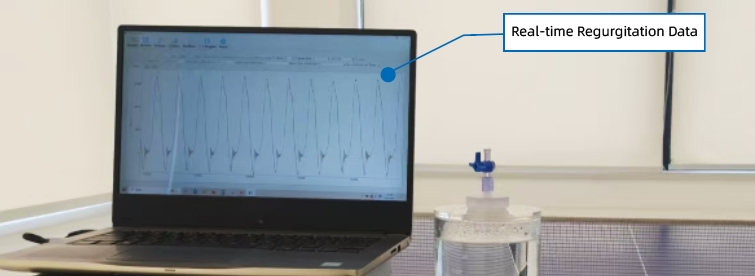

They can be easily integrated into existing fluid systems via the barb connectors, and provide flow data to judge leakage conditions when the heart valves are fully closed, enabling researchers to gather critical data that enhances the efficiency of artificial heart valve/ heart pump development, production, and testing.

Applications

1.Medical device testing systems: such as dialysis machines, artificial hearts, organ transplant systems, heart-lung machines, blood pumps, artificial heart valves, and hemodynamic testing

2.Scientific laboratory systems

Product Features

±2% Accuracy

Designed for heart valves and hemodynamic testing, providing researchers with the confidence to make informed decisions based on flow data.

Fast fluid dynamics capture

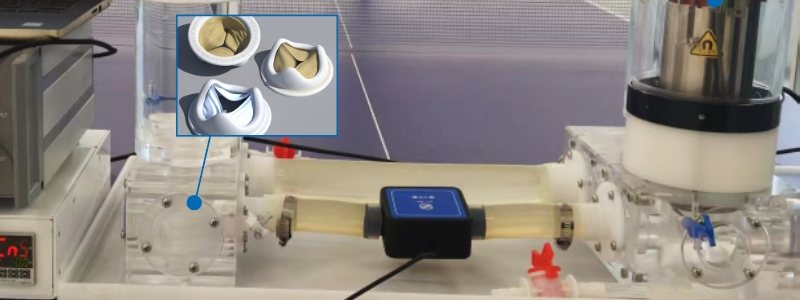

TH series ultrasonic flow sensor can accurately measure flow rates, velocity profiles, and turbulence characteristics in real time as fluid passes through the valve,  which is essential for evaluating the performance and effectiveness of artificial heart valves.

Repeatable result

Consistency helps researchers identifying any deviations or anomalies in the flow, ensures better control and optimization of processes, leading to improved efficiency and performance.

Multiple  features

Support bidirectional measurement, fluid volume calculation, and bubble detection.
No clogging, no steering, and no dead spots, low fluid pressure loss.

Product Parameters

Pagoda Fitting Size

Pagoda Head O.D.
inch
mm
TH Series Models
  • 0.30
    7.62
    TH-025
  • 0.44
    11.1
    TH-038
  • 0.58
    14.7
    TH-050
  • 0.72
    18.3
    TH-063
  • 0.86
    21.9
    TH-075
  • 1.14
    29.0
    TH-100
