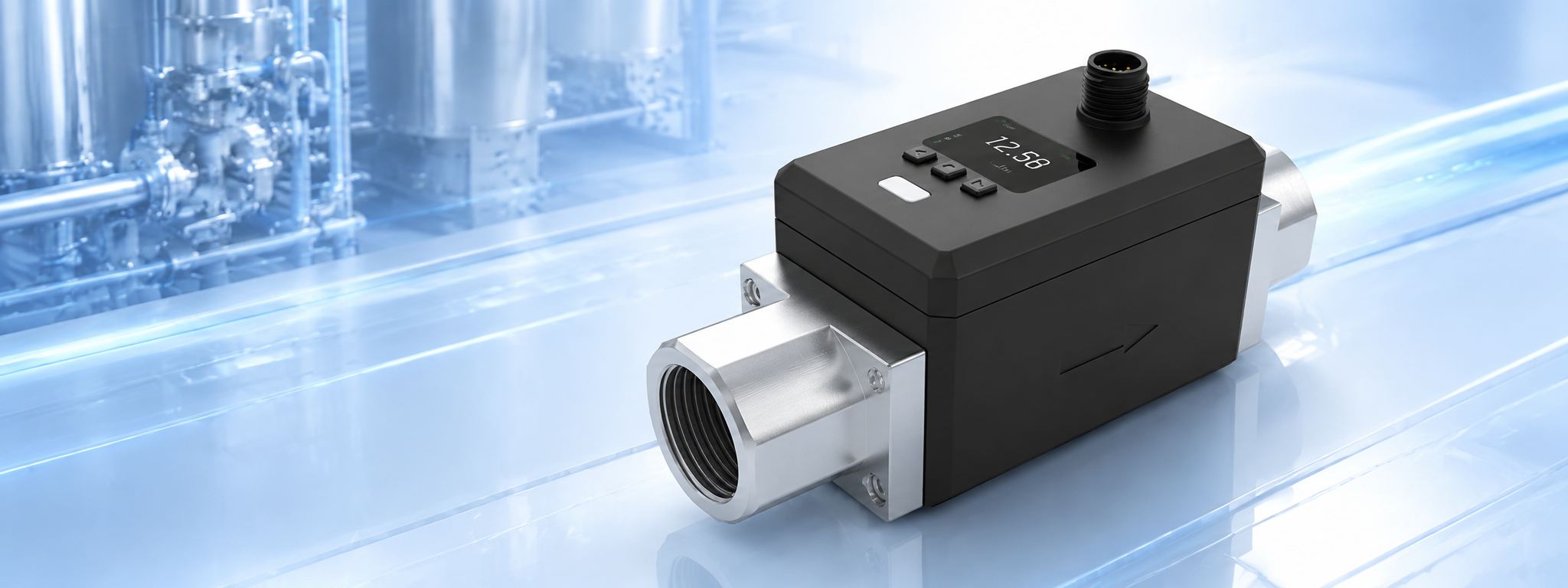

TGD series In-line Ultrasonic Flow Sensor

The TGD series in-line ultrasonic flow sensors are compact, enabling efficient flow measurement and output without external circuitry. It has a built-in display screen and circuit for direct flow measurement and intuitive data monitoring.

It can be seamlessly integrated into existing fluid systems using standard fluid connectors, with an accuracy of up to ±1%.

Featuring an innovative flow channel design, the TG series operate without moving parts or dead zones, are resistant to wear and scaling, simplify cleaning, and result in minimal pressure loss.

Unlike clamp-on models, in-line sensors do not rely on the material or dimensional accuracy of existing tubing for calibration, enabling immediate measurement upon integration into the system.

The TGD series is ideal for a wide range of applications, including the food and beverage industry, filling and spraying processes, laboratory experimental flow systems, and industrial automation.

Product Features

High Precision

CG series ultrasonic flow sensors is the fusion of high precision and unwavering stability. Every data point is meticulously captured with pinpoint accuracy, empowering users to make informed decisions with confidence. Say goodbye to fluctuations and uncertainties, and embrace a new era of reliability in the flow measurement processes.

Non-Invasive

No direct contact with liquid, hygienic safety. By eliminating direct contact with the liquid, CG series sensor ensure hygienic integrity throughout the measurment process. Experience peace of mind knowing that the processes are safeguarded against contamination risks, setting new standards for operational excellence.

Bi-directional Measurement

More than fluid measurement, CG series sensors can calculate fluid volume and detect air bubble. By calculating fluid volume and detecting air bubbles in real time, users gain a comprehensive understanding of the system dynamics. Say hello to enhanced efficiency and proactive maintenance, all at users fingertips.

Compact in Size

Circuit embedded in the sensor and no external circuit required. Designed with compactness in mind, CG series ultrasonic sensors house cutting-edge circuitry within their sleek forms. Bid farewell to bulky external circuits as the sensors seamlessly integrate into any setup. Experience a liquid mearsurement solution that not only saves space but also minimizes blockages, dead areas, and fluid pressure loss, ensuring optimal performance at every turn.

Compatibility

XY-TEK sensors provide standard output methods designed to seamlessly integrate with your existing infrastructure. Experience a hassle-free transition as your operations evolve to new heights of efficiency and productivity.

Customized Calibration

With our customized calibration services, we fine-tune the sensor parameters to match users specific requirements. Whether it's the plastic tubing material, size, temperature, or liquid type, we ensure that users’ sensor operates at peak efficiency tailored to the exact specifications.

Specifications

Measurable liquids
Water, beverages, gasoline, paints, chemicals, etc., containing no or few solid particles
Precision
2% and adding zero drift
Calibration
Factory default calibration: 22±3°C, water
Housing materials
Plastics
Input Voltage
12-30 VDC
Current consumption
Less than 20mA (without external load)
Interface
8 pole push-pull plug
Operating Temperature
0°C to 60°C
Storage temperature
-20°C to 70°C
Shield
Wire grounding
Inputs and outputs
  • • RS485
  • • 3 Current output modes selectable: 4-20mA,0-20mA,0-24mA
  • • 2 Voltage output modes selectable: 0-5V,0-10V
  • • 0-20KHz frequency output
  • • 3 digital output modes selectable: NPN, PNP, PUSH-PULL
  • • Digital input, grounding time should be more than 20 ms
Accessories
8-core shielded cable, default length 1.5 m
Optional Accessories
  • • USB data converter, for connecting a sensor to a computer
  • • Flow sensor tool kit with display, allows up to 3 sensors to be connected to a computer simultaneously
  • • Flow sensor display screen, connects to a single sensor and routes the sensor cable out
  • • Data cable, 3 meters, with push-pull connectors on ends, connects the flow display to the sensor
