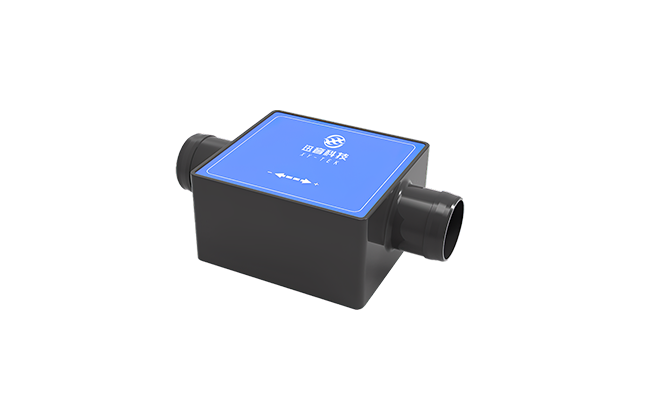

TH series Pulsatile Flow Sensors / Flow Meters

The TH series pulsatile flow rate measurement sensors/flow meters are designed specifically for heart valve, cardiovascular and hemodynamics research.

With the ±3% flow rate measurement accuracy, TH series pulsatile flow rate measurement sensors/flow meters can effectively capture the pulsation characteristics of high-velocity liquids within the test flow path.

Product Features

High Accuracy: ±3%

The flow rate measurement accuracy is essential for applications requiring stringent quality control and process optimization.

PC Software Support

View, monitor, and export real-time flow rate and cumulative volume data seamlessly via intuitive PC software.

Bi-Directional Flow Measurement

It can measure in both directions, calculate the volume of the fluid, and has the function of bubble detection.

Advanced Waveform Analysis

Generate detailed hemodynamic pulsation waveforms and overlay multiple measurement graphs for in-depth comparative analysis.

No Blockages

Designed to operate without blockage or dead zones, enables smoother fluid flow and reduces potential system strain.

Fast Response Time

Features a rapid response time, making it ideal for accurately analyzing pulsating and dynamic flow profiles.

Technical Parameter


Measurable Liquids	Water, blood, saline, buffer solutions, glycerol, etc.
Accuracy	±3% RD(Reading) plus zero point drift *(water, 22°C ±3°C)
Calibration	Factory calibration: Option 1 (default): 23±3°C (water); Option 2: 37±3°C (physiological saline); Other options: contact factory
Housing Material	Plastic
Operating Temperature	0°C – 60°C
Storage Temperature	-20°C – 70°C
Shielding	Wire grounding

Product Specifications

Product Model	Low Flow Range	Standard Flow Range	Size A (Pipe)	Size B (Thread)
TH038N0	0-1,000 mL/min	0-10,000 mL/min	78mm	11.1mm
TH050N0	0-2,000 mL/min	0-20,000 mL/min	NA	14.7mm
TH063N0	0-5,000 mL/min	0-50,000 mL/min	NA	18.3mm
TH075N0	0-5,000 mL/min	0-50,000 mL/min	NA	21.9mm
TH100N0	0-10,000 mL/min	0-100,000 mL/min	130mm	29.0mm

Case in Medical

Extracorporeal Circulation Systems

Extracorporeal Membrane Oxygenation (ECMO), often referred to as an artificial heart-lung machine, is an emergency medical technology used to support or completely replace the function of the heart and/or lungs. In high-risk cardiac procedures like Transcatheter Aortic Valve Replacement (TAVR), as well as in the resuscitation of Intensive Care Unit (ICU) patients suffering from severe respiratory or circulatory failure, ECMO serves as the ultimate line of defense for life.
