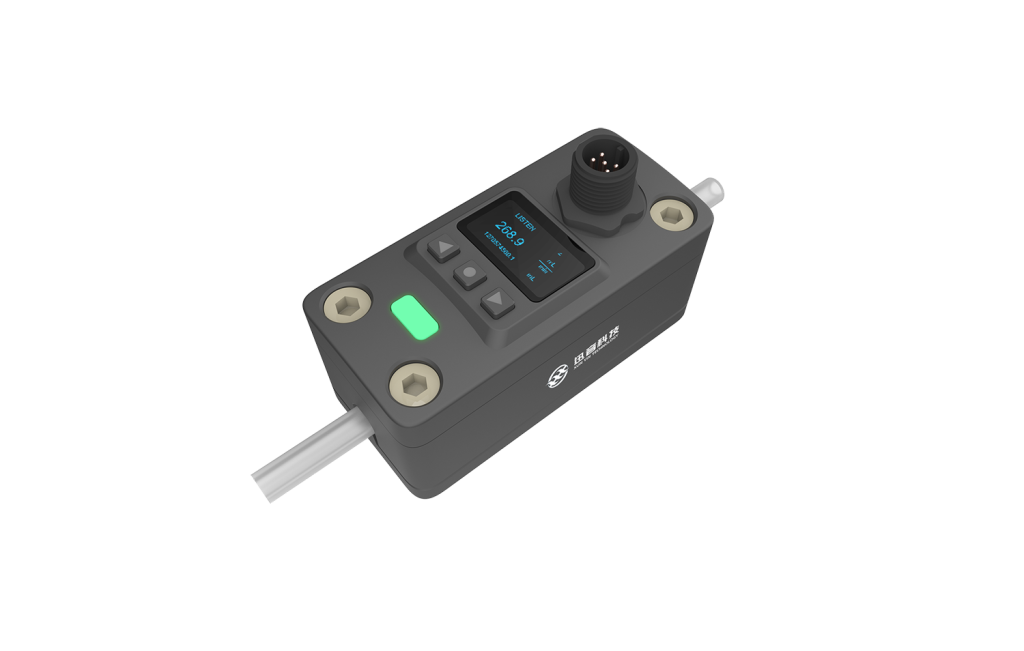

CPD series Clamp-on Ultrasonic Flow Sensors / Flow Meters

The CPD series clamp-on ultrasonic flow sensors/flow meters adopt an integrated design, with a built-in display and circuit system. It can directly measure the flow rate and intuitively read the monitoring data.

The ultrasonic flow sensors/flow meters can be directly clamped onto the outside of a rigid plastic pipe to accurately measure the liquid flow velocity within the pipe. The accuracy can reach ±2%, and it can also detect bubbles and large solid impurities in the liquid.

Product Features

Repeatability: ±0.1% F.S.

Engineered for exceptional accuracy and long-term stability, ensuring reliable performance in demanding environments.

Hygienic Safety

The non-invasive measurement reduces the contamination risk and makes it ideal for sensitive applications in the pharmaceutical industries, ensuring safety and compliance with health regulations.

Bi-Directional Flow Measurement

Bidirectional measurement, capable of calculating fluid volume, and featuring bubble detection function

Compact Design

The embedded circuit eliminates external wiring, streamlining installation and reducing space requirements. This design simplifies setup while maintaining high performance.

No Blockages

Designed to operate without blockage or dead zones, enables smoother fluid flow and reduces potential system strain.

Output

Offers standard output protocols, allowing for quick, effortless, and seamless integration into customer’s existing control systems.

Technical Parameter


Measurement Principle	Ultrasonic Transit-Time Method
Measurable Liquids	Water, chemical solutions, oil, glue, grinding fluid, etc. (excluding large solid particles and air bubbles)
Calibration	Manufacturer default calibration: 22℃±3℃ (water)
Sensor Housing	Plastic
Liquid Temperature	0℃ – 70℃
Ambient Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
Operating Humidity	10% – 90% RH (non-condensing)
Protection Level	IP65
Installation	Thread mounting
Cover Bolt Torque	CPD025NB: recommended 35 cN·m CPD038NB, CPD050NB, CPD075NB, CPD100NB: recommended 45 cN·m
Operating Voltage	18-30VDC
Current Consumption	24V power supply, current consumption 30mA, but not exceeding 100mA

Product Specifications

Product Model	Flow Range	Low Flow Cut-off	Outer Diameter	Inner Diameter
CPD025NB CPD006MB	0-5L/min	±10mL/min	1/4” 6mm	3～5mm
CPD032NB CPD008MB	0-10L/min	±15mL/min	5/16” 8mm	5～7mm
CPD038NB CPD010MB	0-15L/min	±20mL/min	3/8” 10mm	5～7mm
CPD050NB CPD012MB	0-30L/min	±30mL/min	1/2” 12mm	6～11mm
CPD063NB CPD016MB	0-40L/min	±40mL/min	5/8” 16mm	10～14mm
CPD075NB CPD020MB	0-50L/min	±50mL/min	3/4” 20mm	10～17mm
CPD100NB CPD026MB	0-80L/min	±80mL/min	1” 26mm	15～22mm
CPD125NB CPD032MB	0-100L/min	±100mL/min	1 1/4” 32mm	20～28mm

Case in Industrial Automation

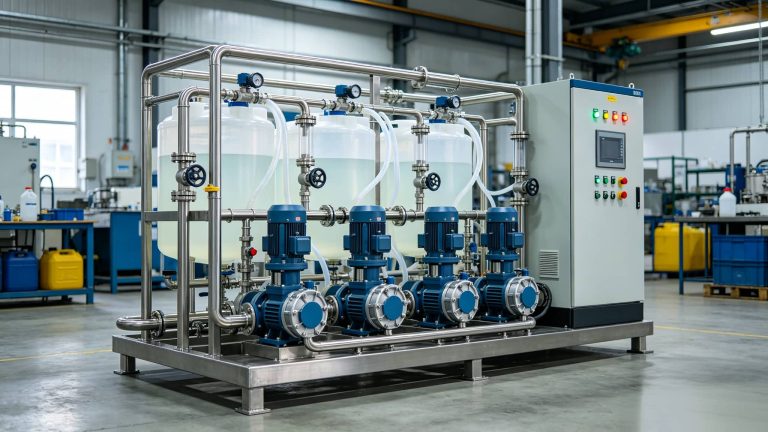

Automated Dosing Systems

In the fine chemical industry—whether it is the micro-dosing of flavors and fragrances, the continuous injection of polymer additives, or chemical treatment in industrial water systems—production processes are shifting from “manual valve adjustments based on experience” to “data-driven precision control.”
